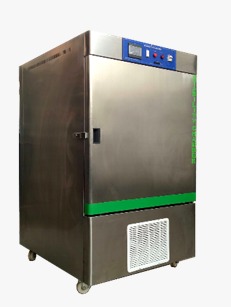

Stability Chamber
APPLICATIONS
- “RAINBOW” brings the ultra-high-tech Stability Chamber Microprocessor controlled designed as per ICH GUIDELINES for various stability and shelf life tests on Pharma, Bulk Drugs, Drug Substances, Biomedical, Healthcare, Food Products, Biotech etc.
- These are widely used for confirmatory studies for direct comparison of drug substance under controlled environmental conditions.
SALIENT FEATURES & CONSTRUCTION
Robust construction outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
- Inner chamber made of STAINLESS STEEL SHEET (304 Grade).
- Fitted with durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
- Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
- Inner chamber has SS angels for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
- A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
- High grade PUF INSULA TION between outer and inner chamber for minimal thermal losses.
- Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
- Heating is done by indirect heating system by air heaters made of stainless steel placed in the path of moving air in the chamber.
- Temperature Range. Temperature ranges of our Stability Chamber models are 200C to 600C.
- Temperature controlled by microprocessor-based temperature controller having LED display with an accuracy of +10C fitted with PT-100 sensor (Resolution 0.10C)
- Humidity System: Humidity is generated by steam injection system consist of boiler tank, placed below the chamber fitted with boiler heater.
- Humidity Range: 50% of 90% & controlled by mean of an electronic humidity controller cum indicator with an accuracy of + 3 to 5%RH.
- Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based with LED display for Set V alue (SV) & Process V alue (PV) to select any desired temperature & humidity controller cum indicator provided with Volt meter on the panel to read the incoming voltage.
- Caster wheel mounted for easy portability .
- Supplied with cord and plug.
- Operating Voltage: 220 Volts AC (50 Hz).
- TECHNICAL SPECIFICATIONS & ORDERING
| Model No. | |||
| Usable Space in mm | 610 X 450 X 410 | 845 x 500 x 400 | 870 x 570 x 560 |
| Capacity | 4 Cuft. | 6 Cuft. | 10 Cuft. |
| Approx Volume | 113 | 173 | 282 |
| No. of Shelves | 2 | 2 | 3 |
| Temperature Range | 20°C to 60°C (Resolution 0.1°C) | ||
| Temperature Controller | By Microprocessor Based PID Digital T emperature Indicator | ||
| Temp. Accuracy | ±1°C | ||
| Humidity Range | 50% to 90% at cool temperature | ||
| Humidity Accuracy | ±3 to 5%RH. | ||
| Display | LED Display | ||
| Relay | Solid state electronic relay with protective heat sink. | ||
| Air Circulation | By forced convection system | ||
| Insulation | By High density PUF insulation | ||
| Operations | Nearly silent operation with ultra-low vibration | ||
| Voltage Indicator | By Volt Meter fitted on Panel | ||
| High Voltage Protection | Through automatic voltage stabilizer (Optional) | ||
| Electric Supply | 220/230V AC, 50/60Hz | ||
